Home / Library / Work Instructions — Bench Cards / WI-C-004-A-V0

WI-C-004-A-V0 — Sensa Core ISE Electrolyte Analyzer Operation & Daily Cleaning Bench Card

Parent document: SOP-C-004 (per delivered folder & WI code)

PNG imagePDF (print)HTML (editable)

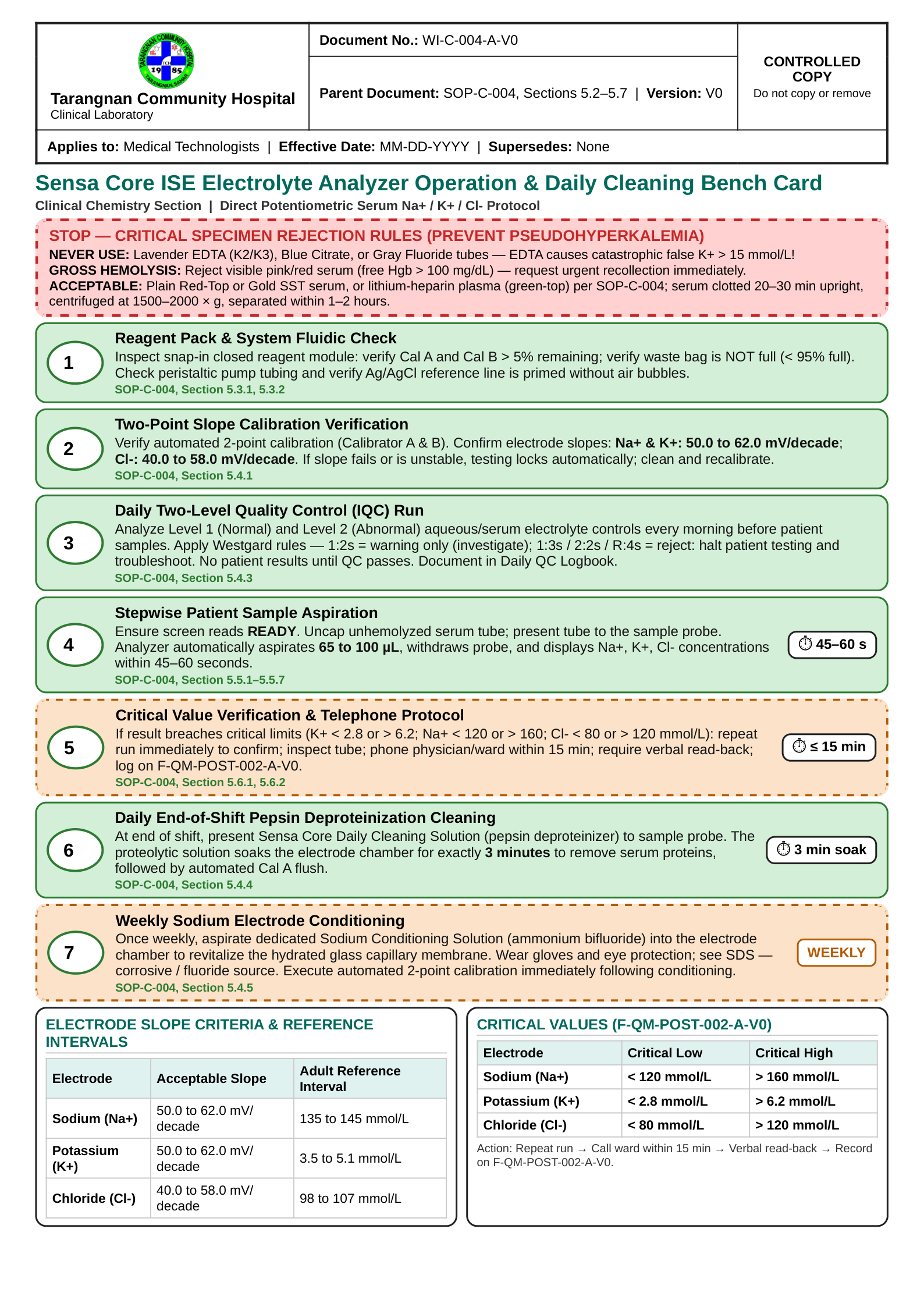

Sensa Core ISE Electrolyte Analyzer Operation & Daily Cleaning Bench Card

Served read-only from the bundled QMS visual library (fixed print-ready set). The Drive masters are untouched.
